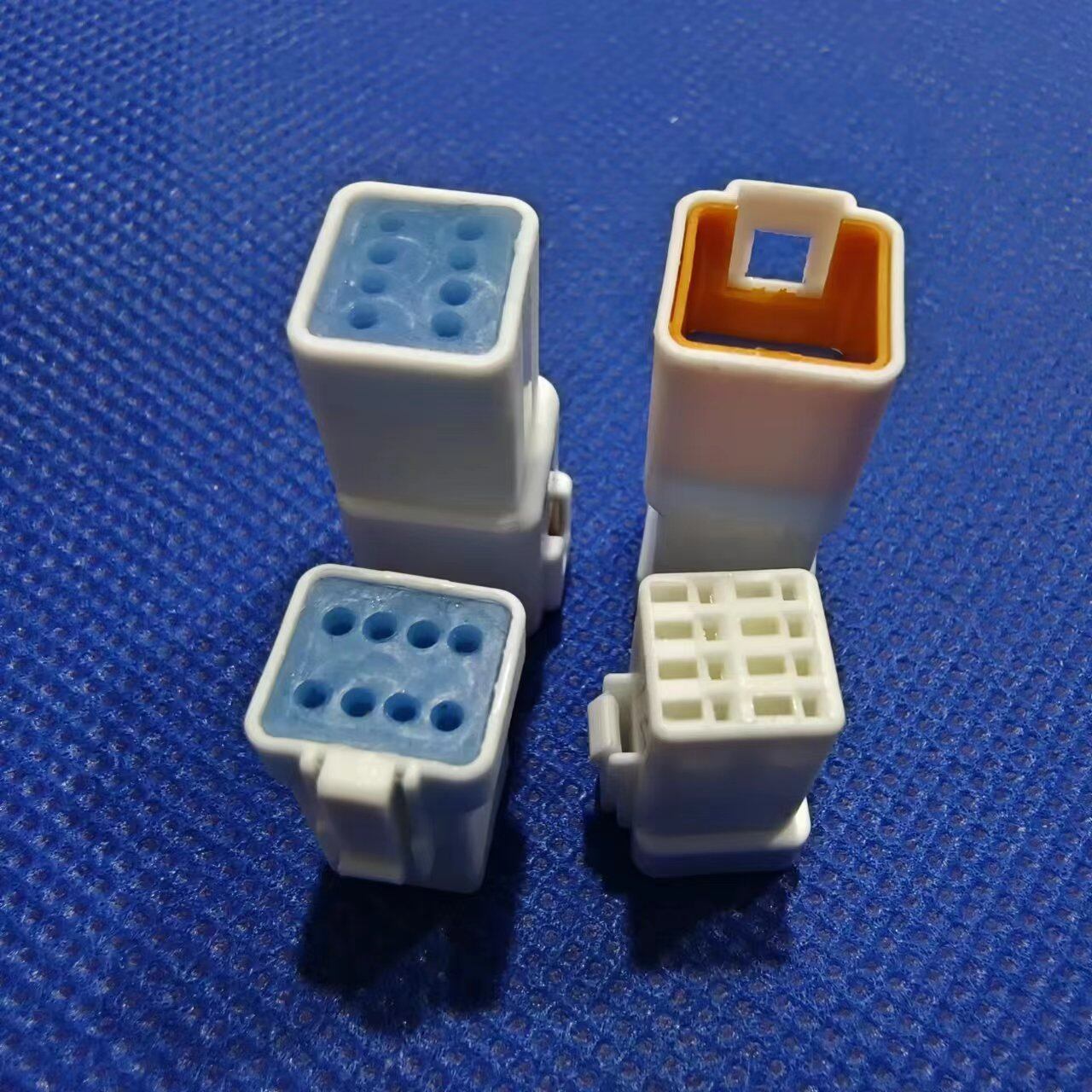

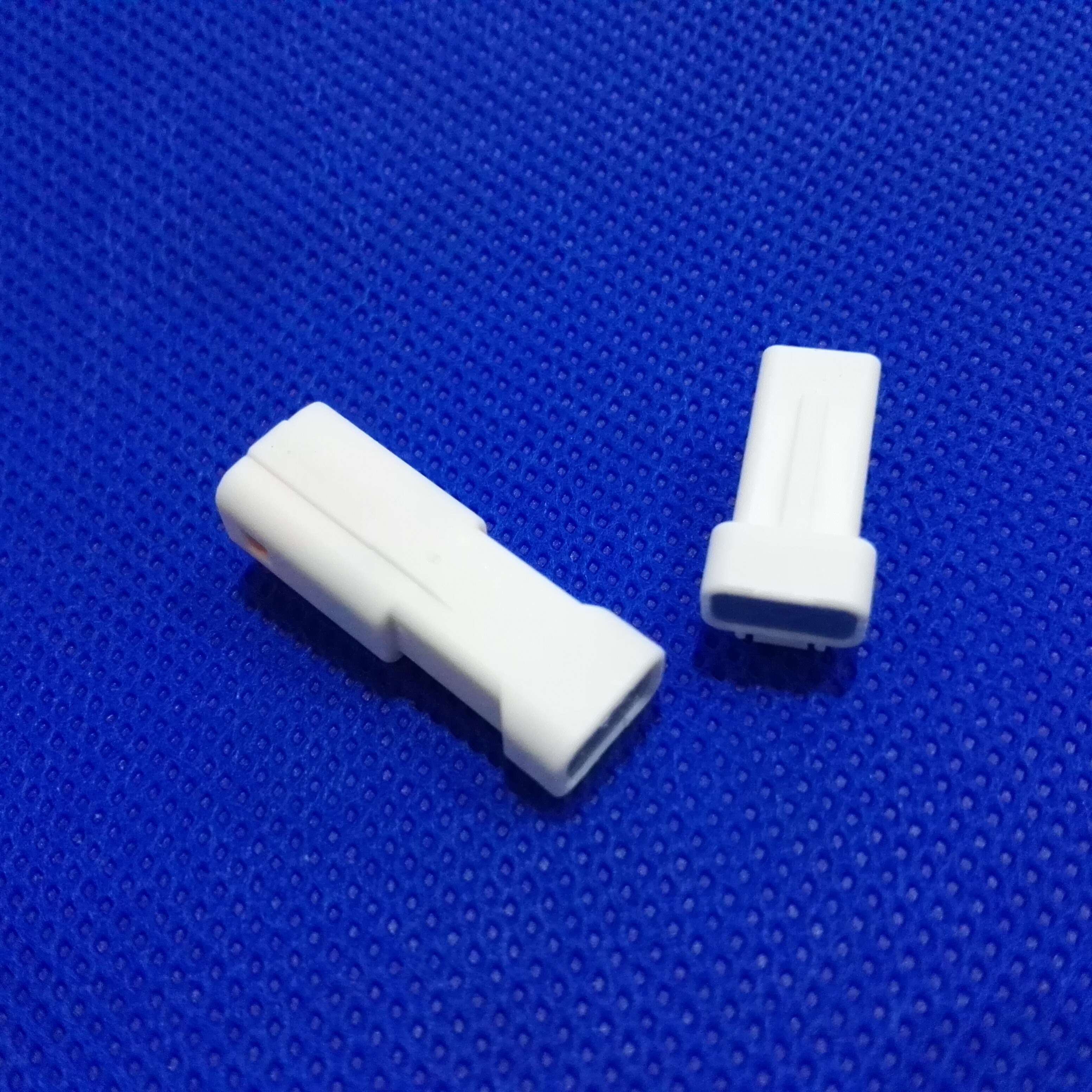

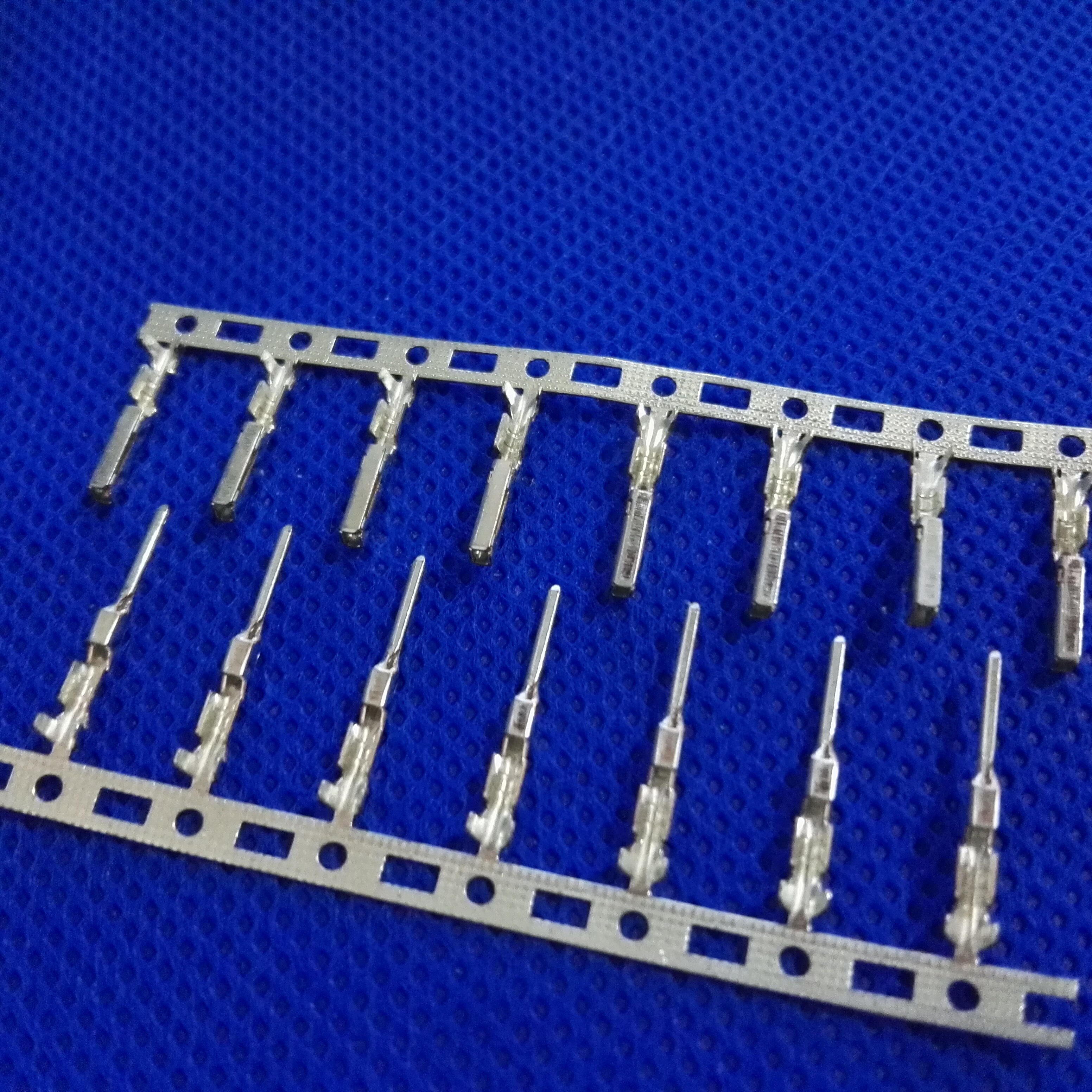

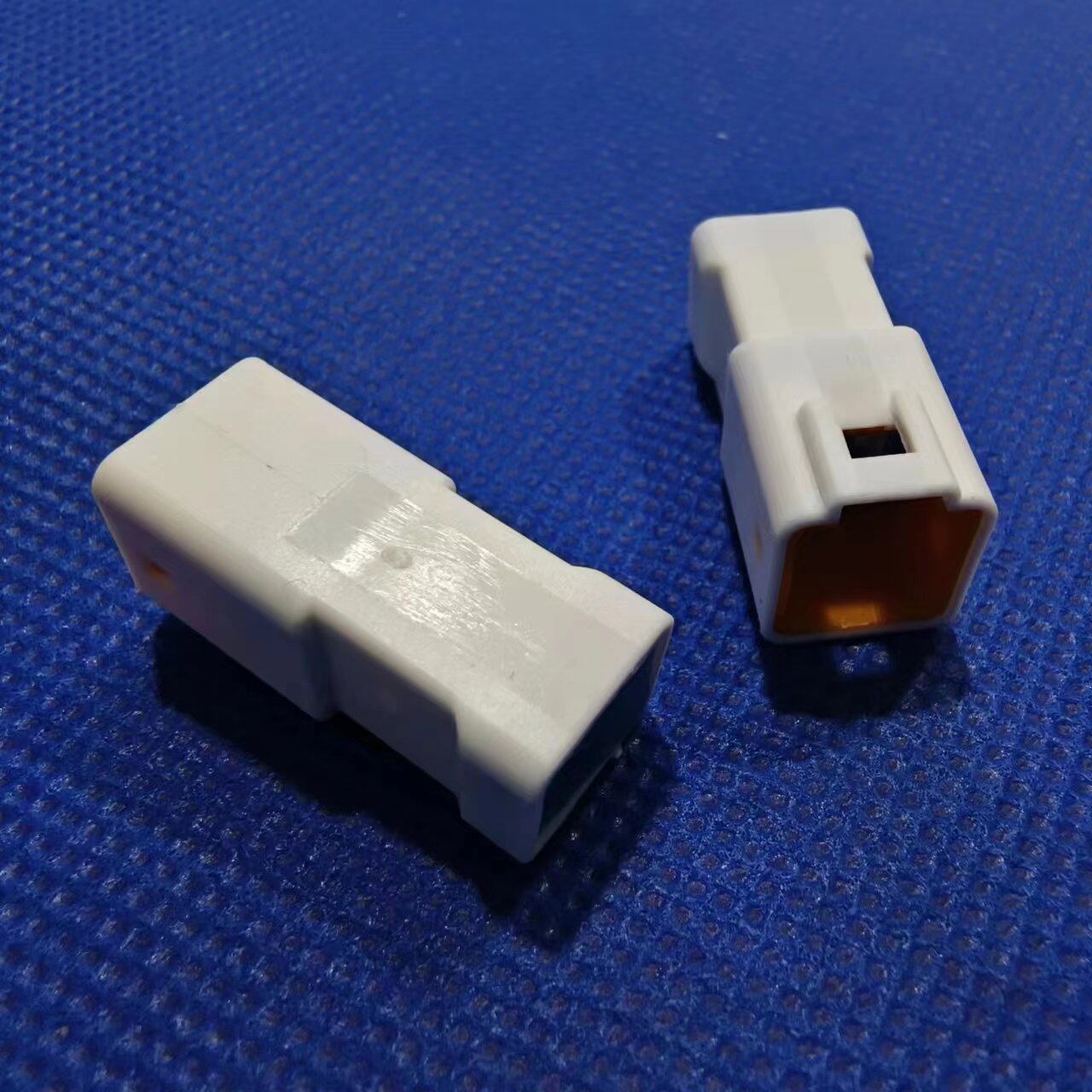

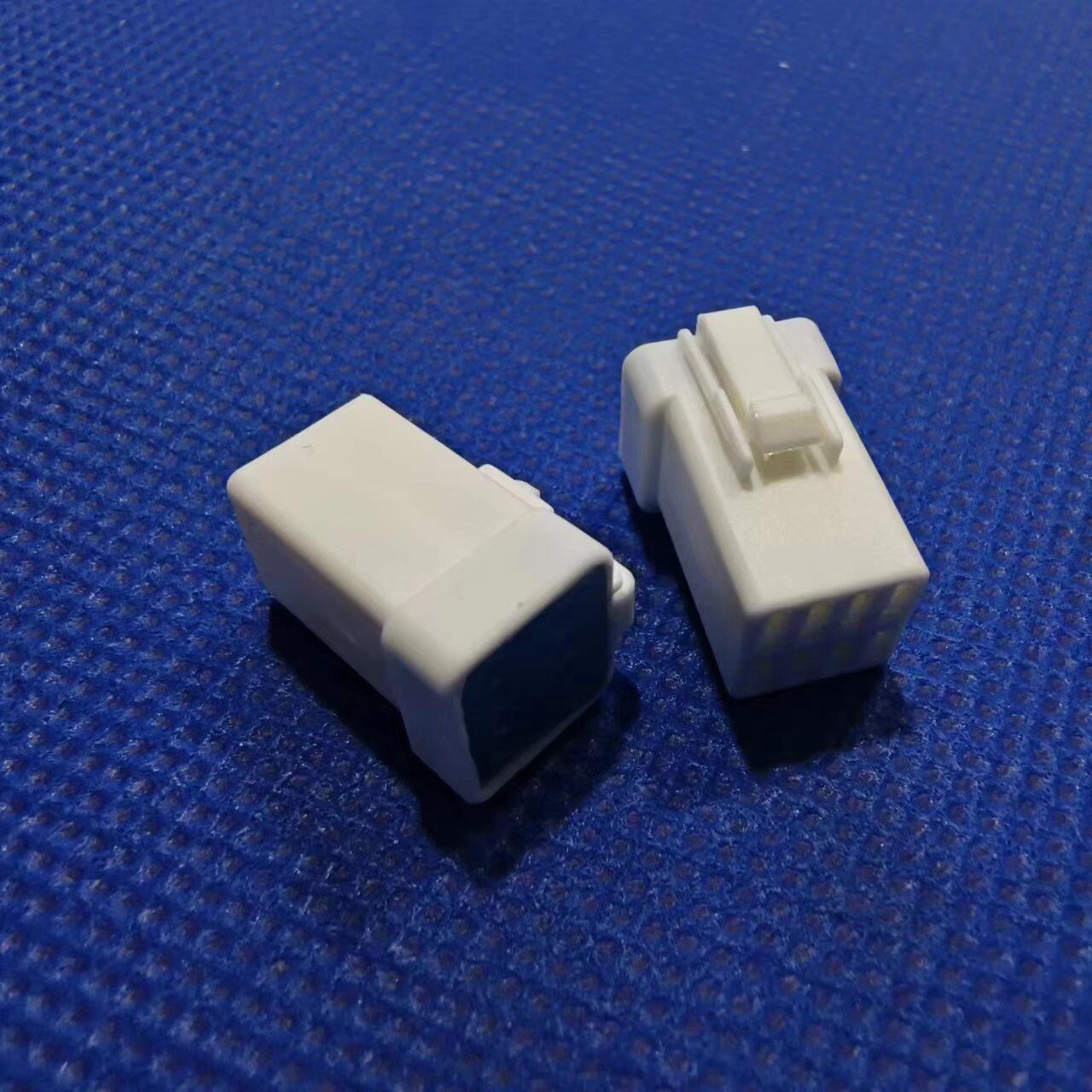

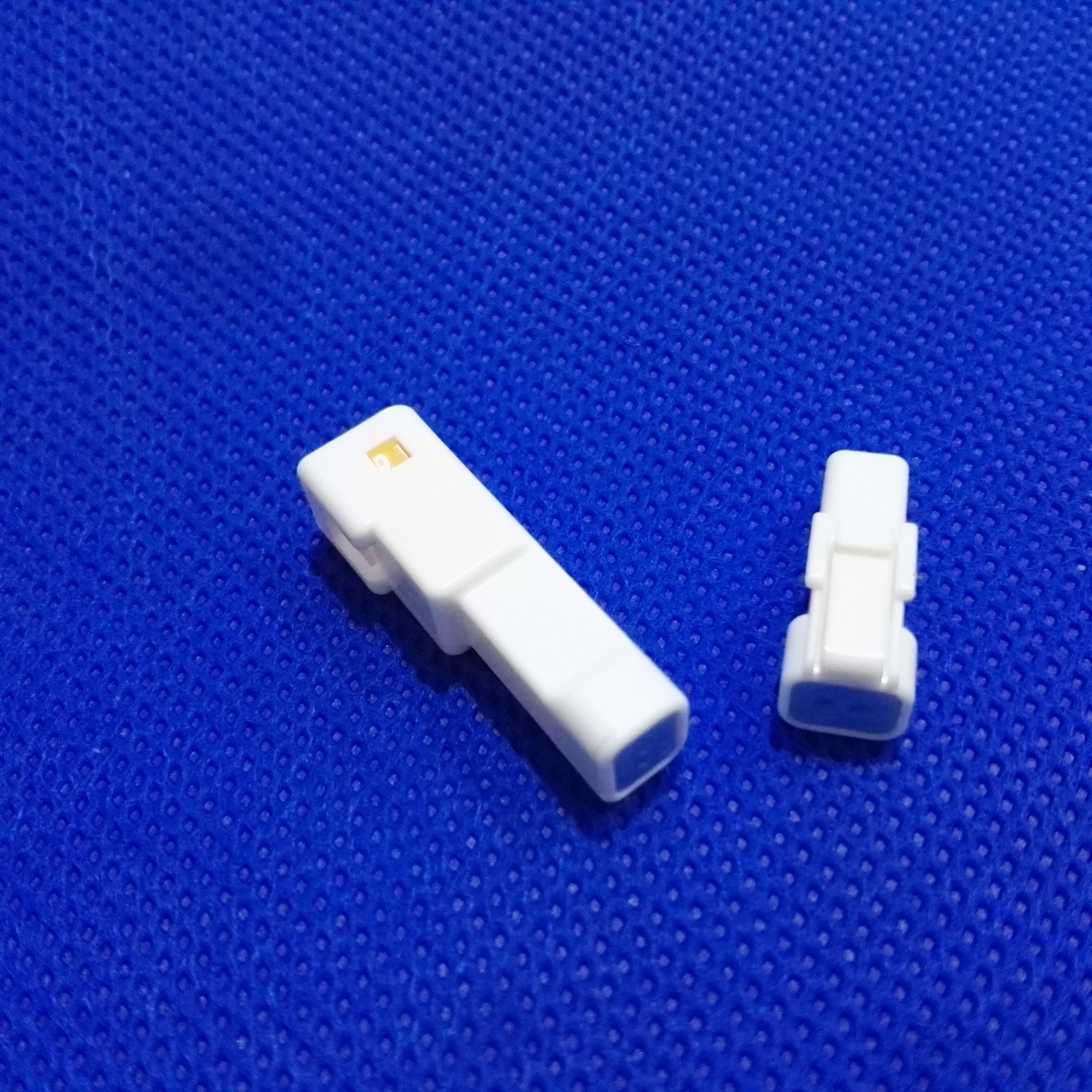

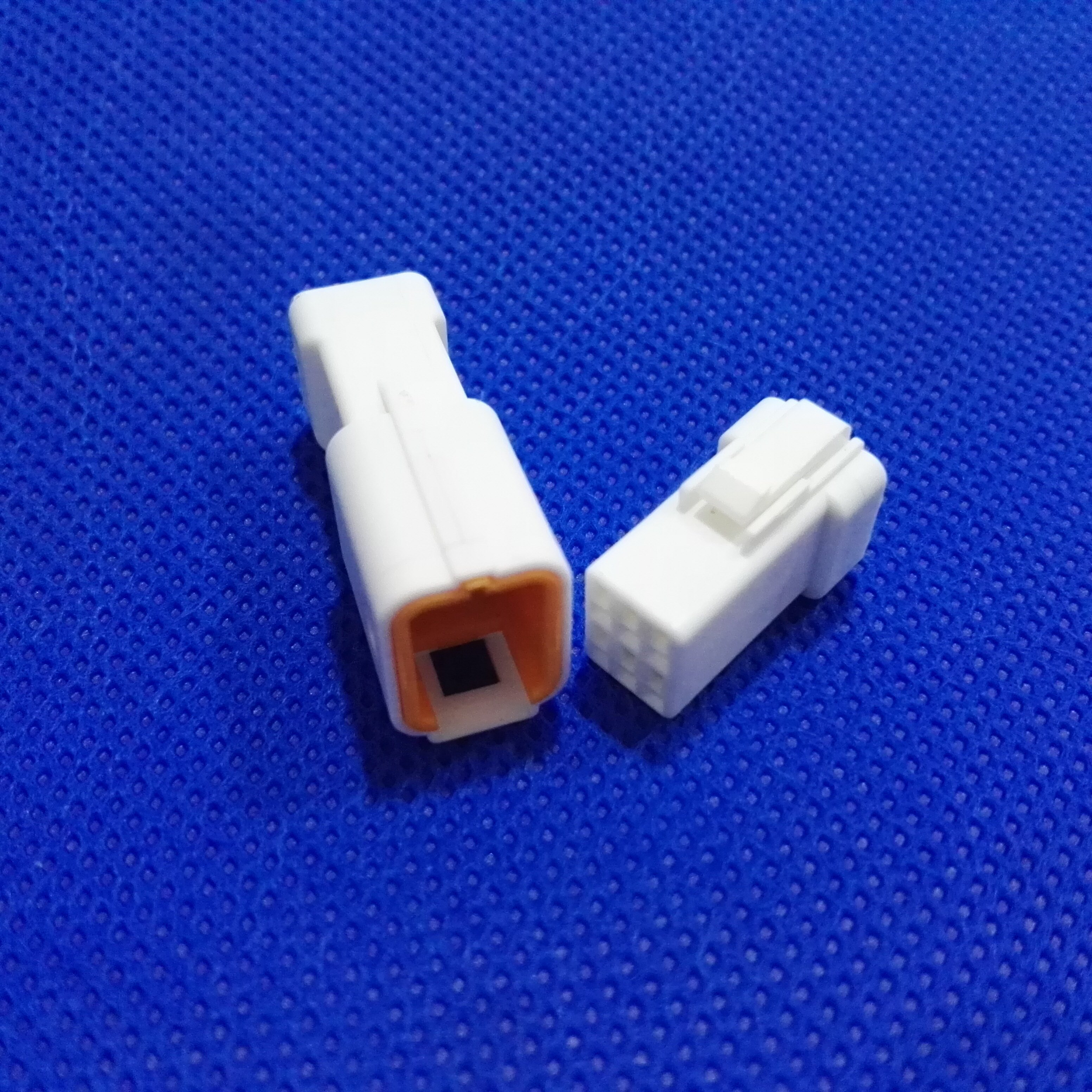

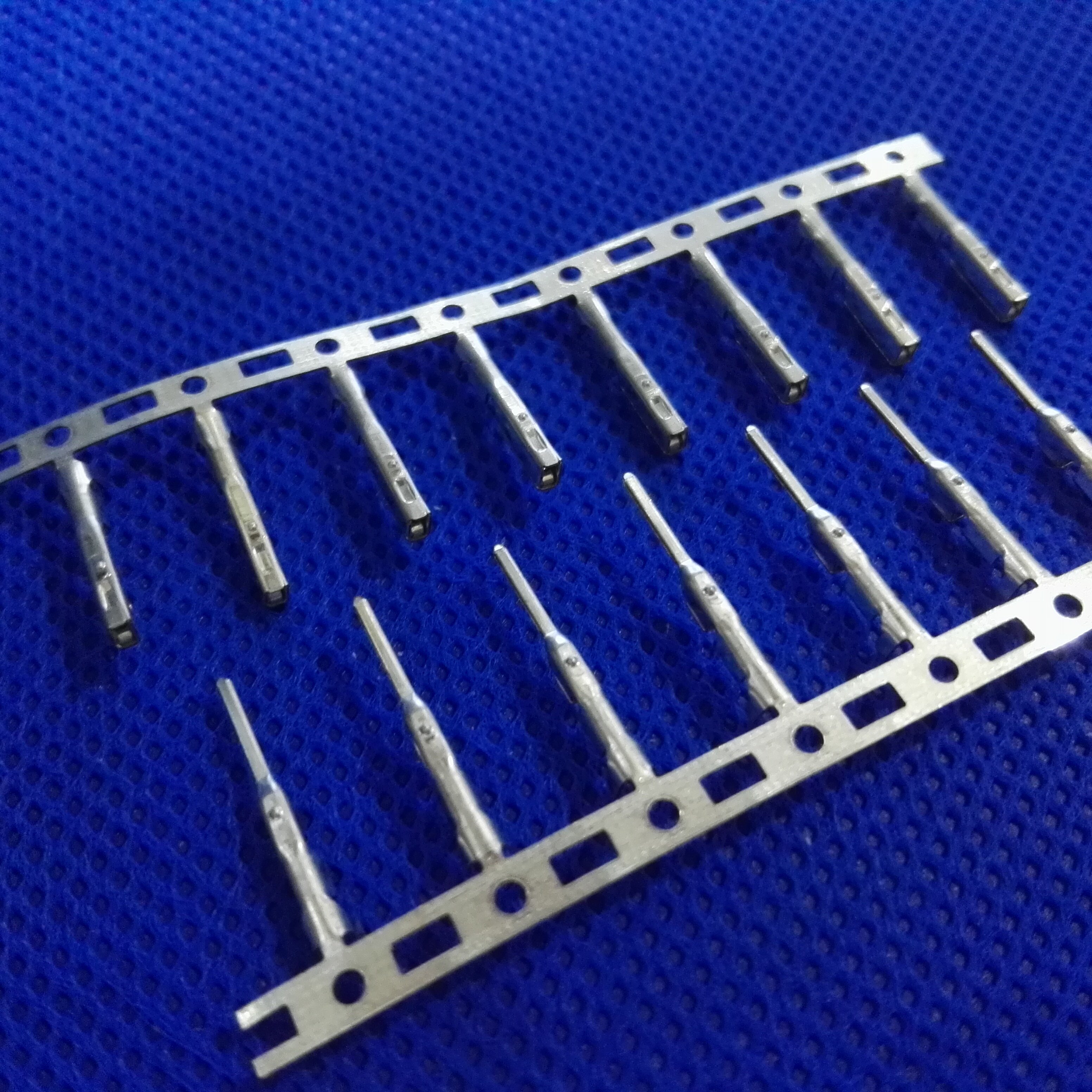

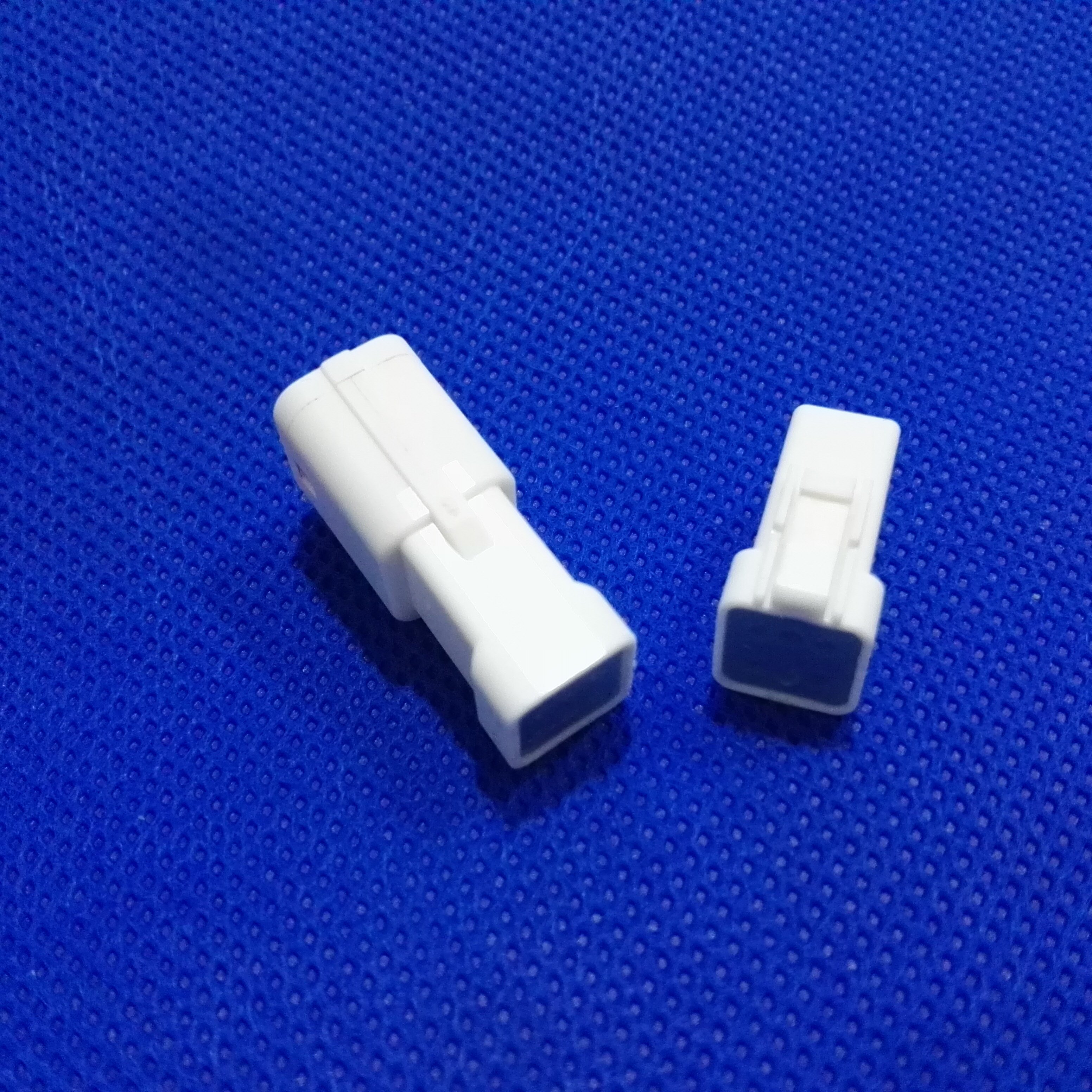

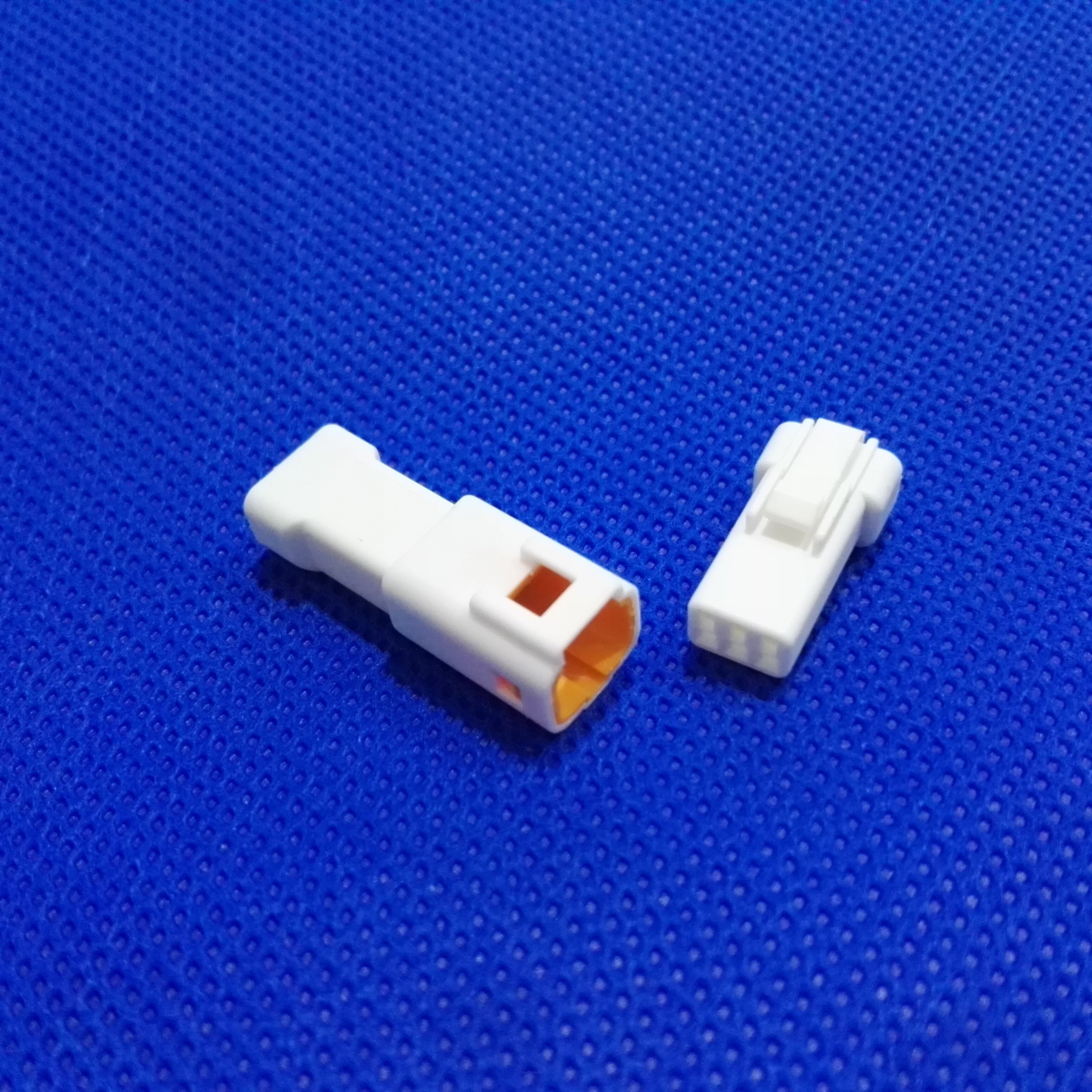

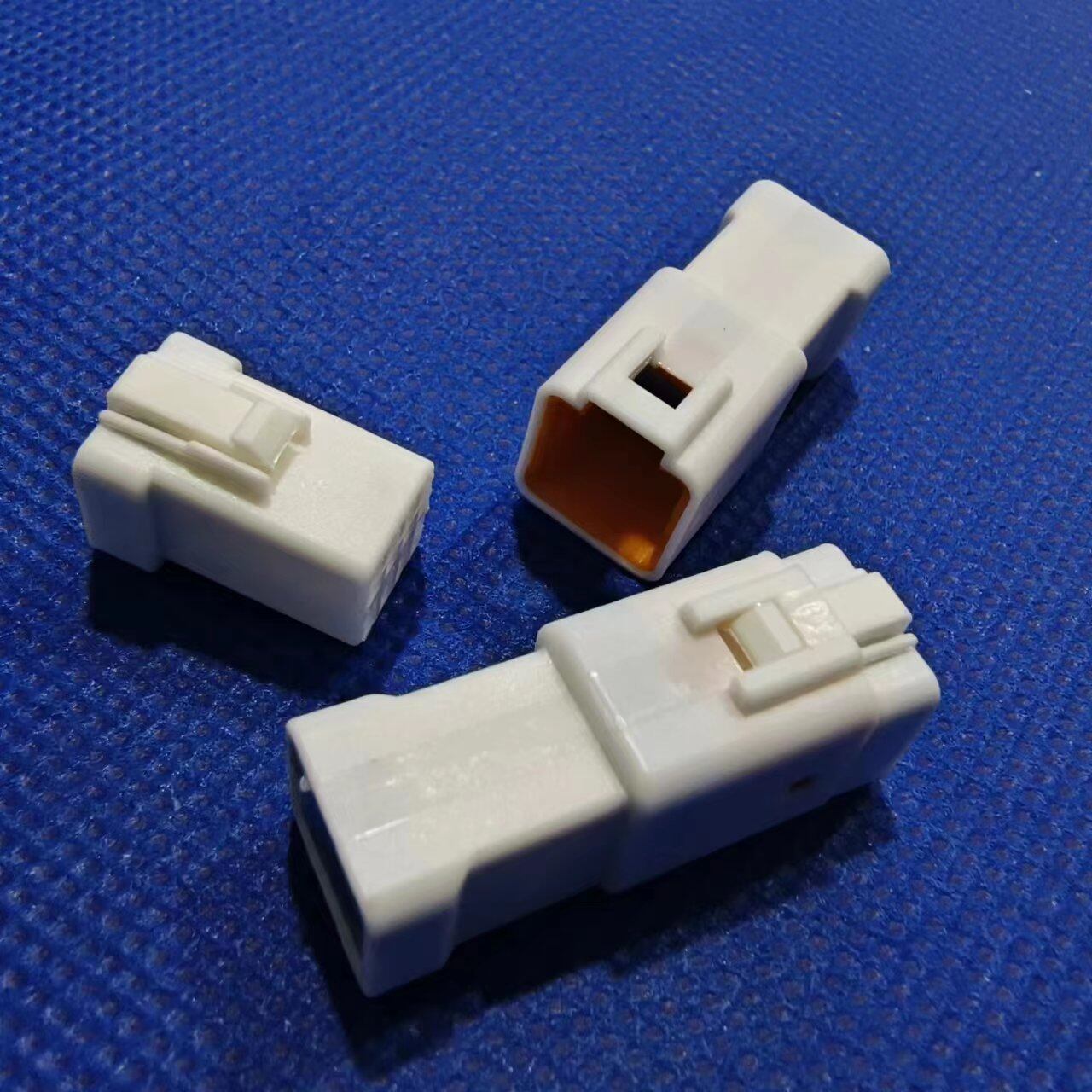

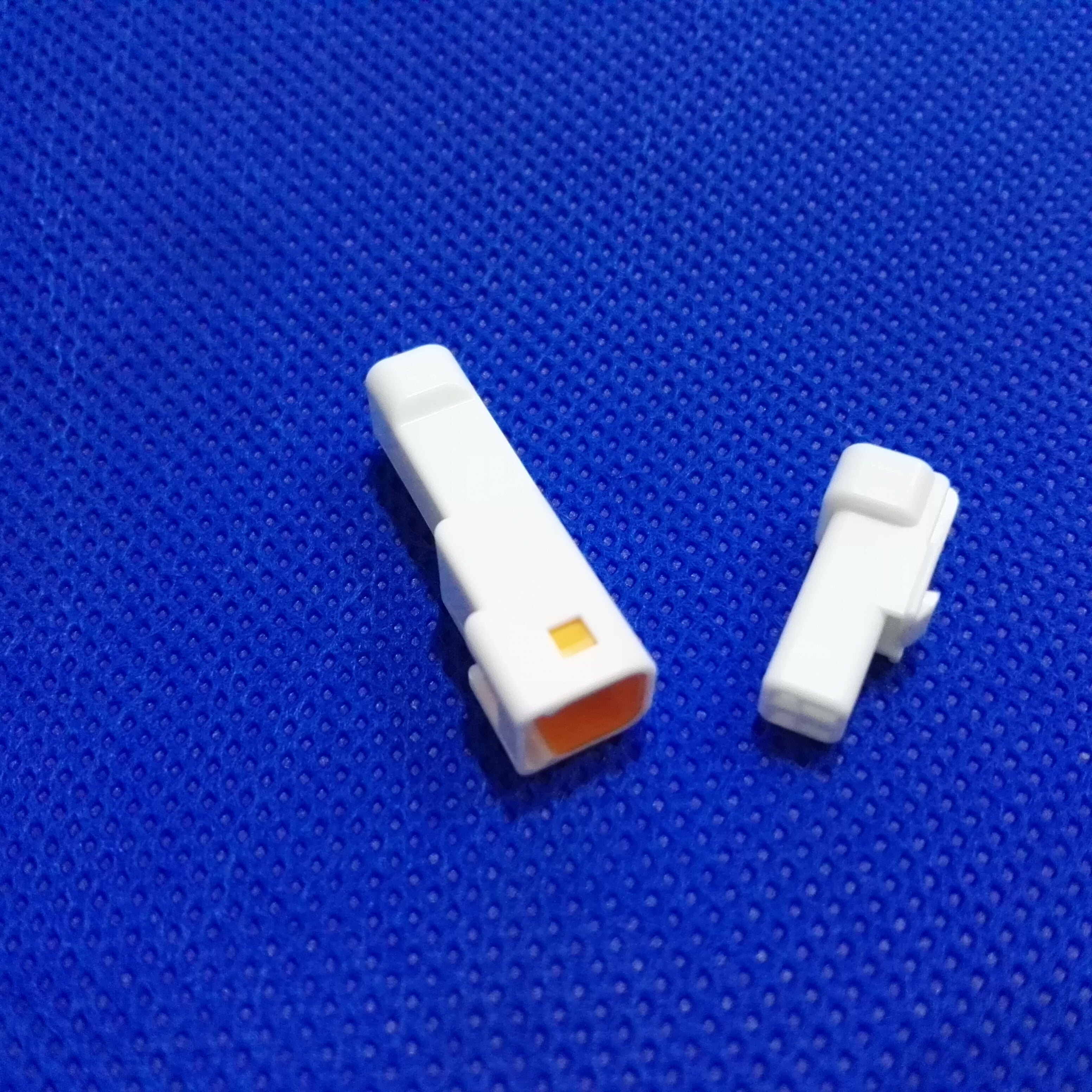

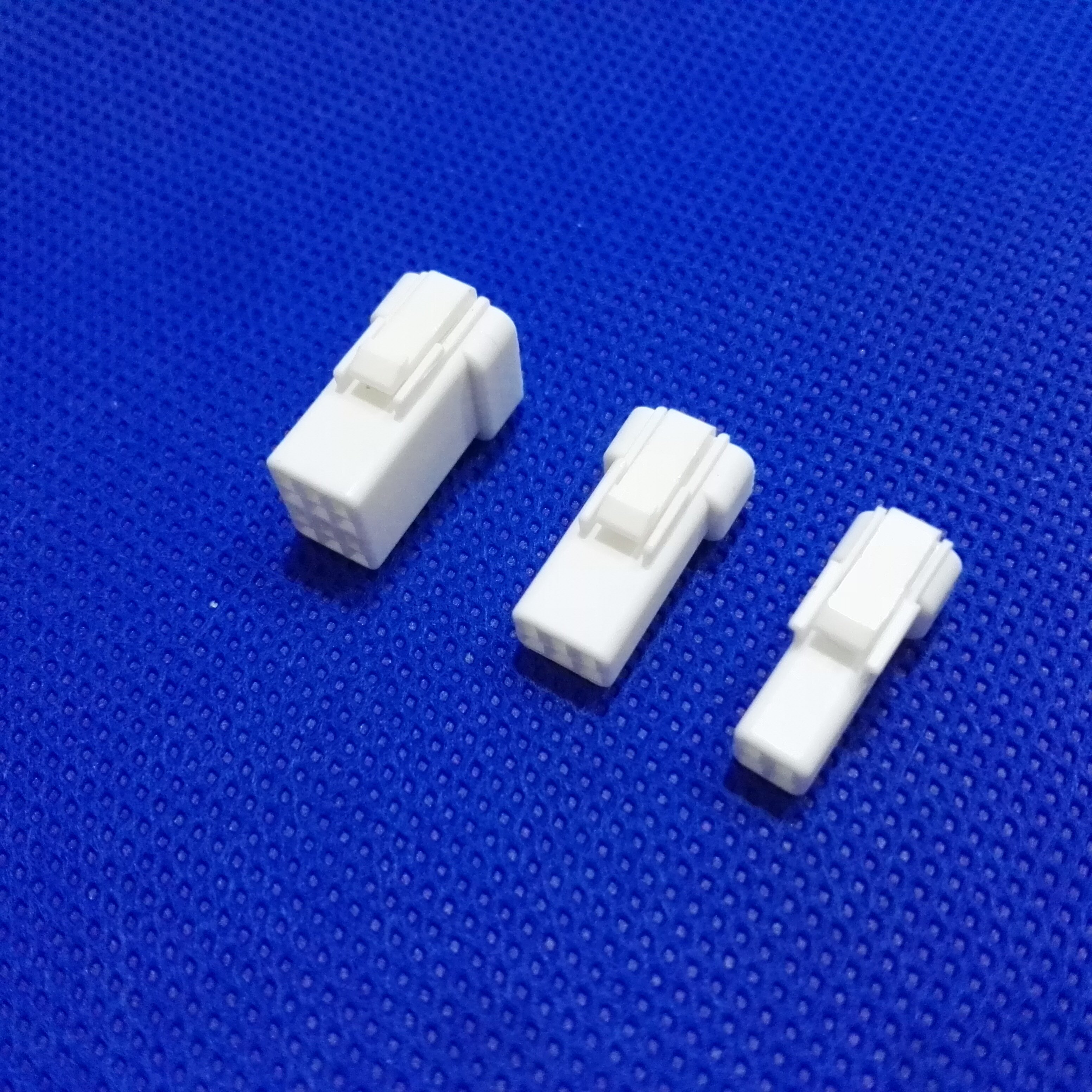

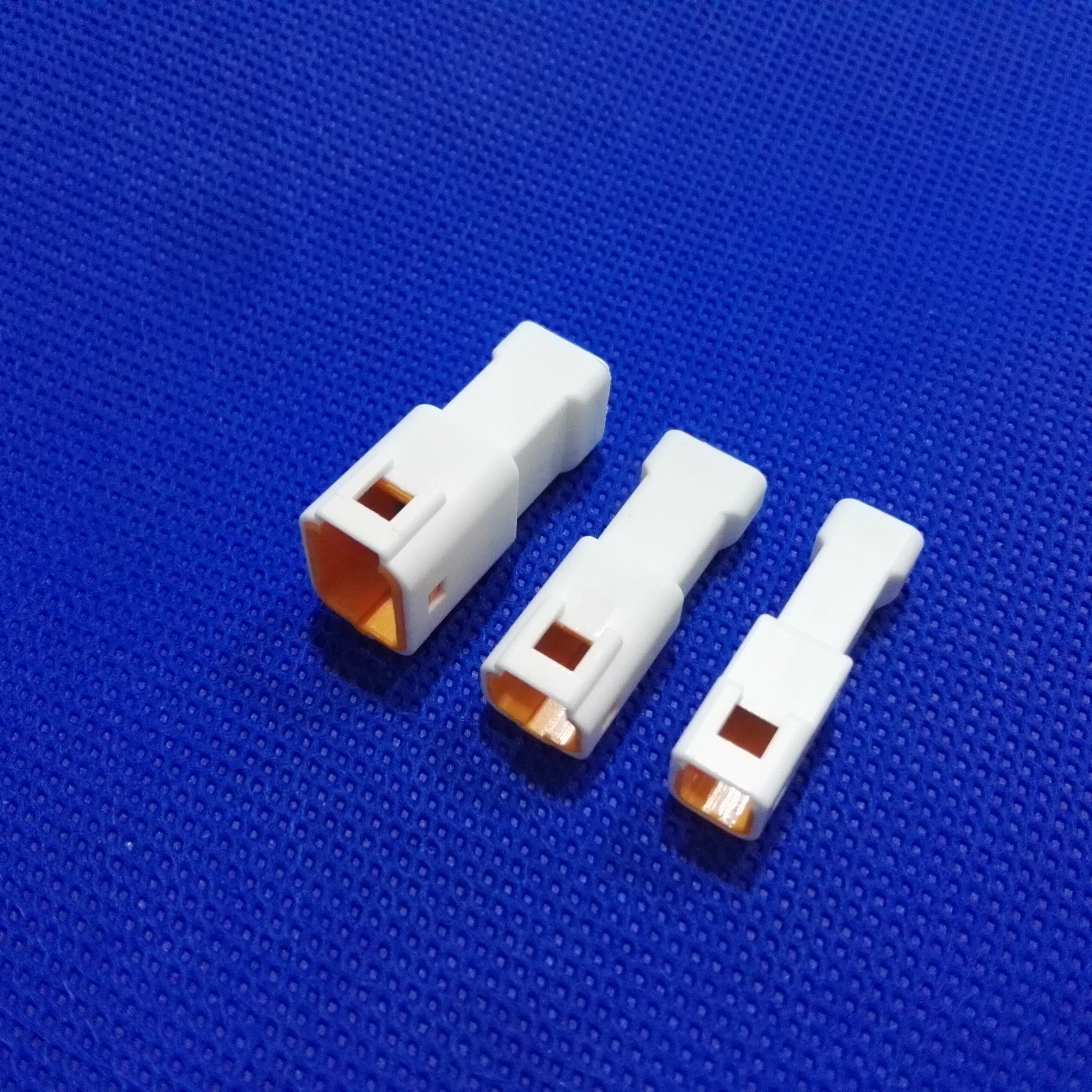

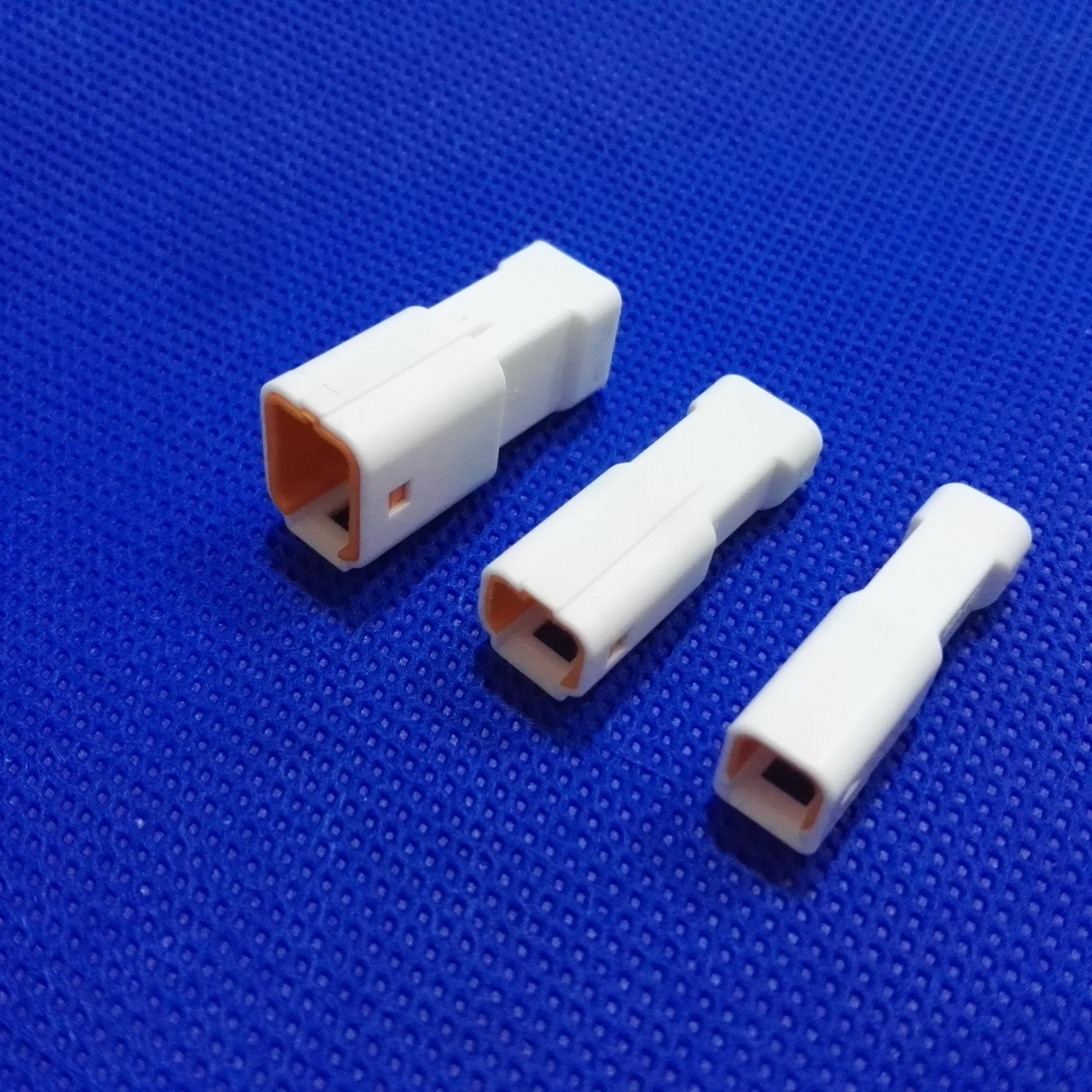

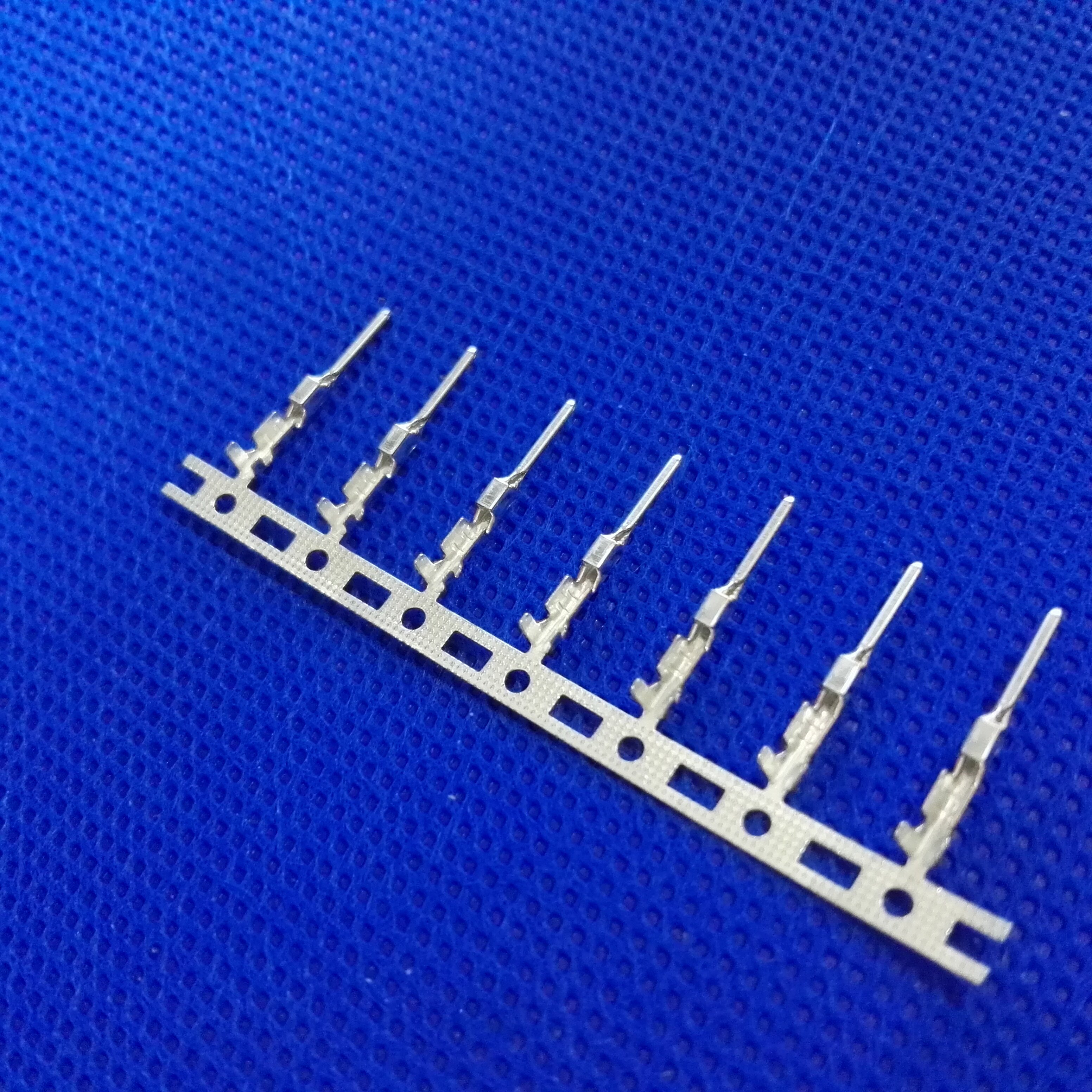

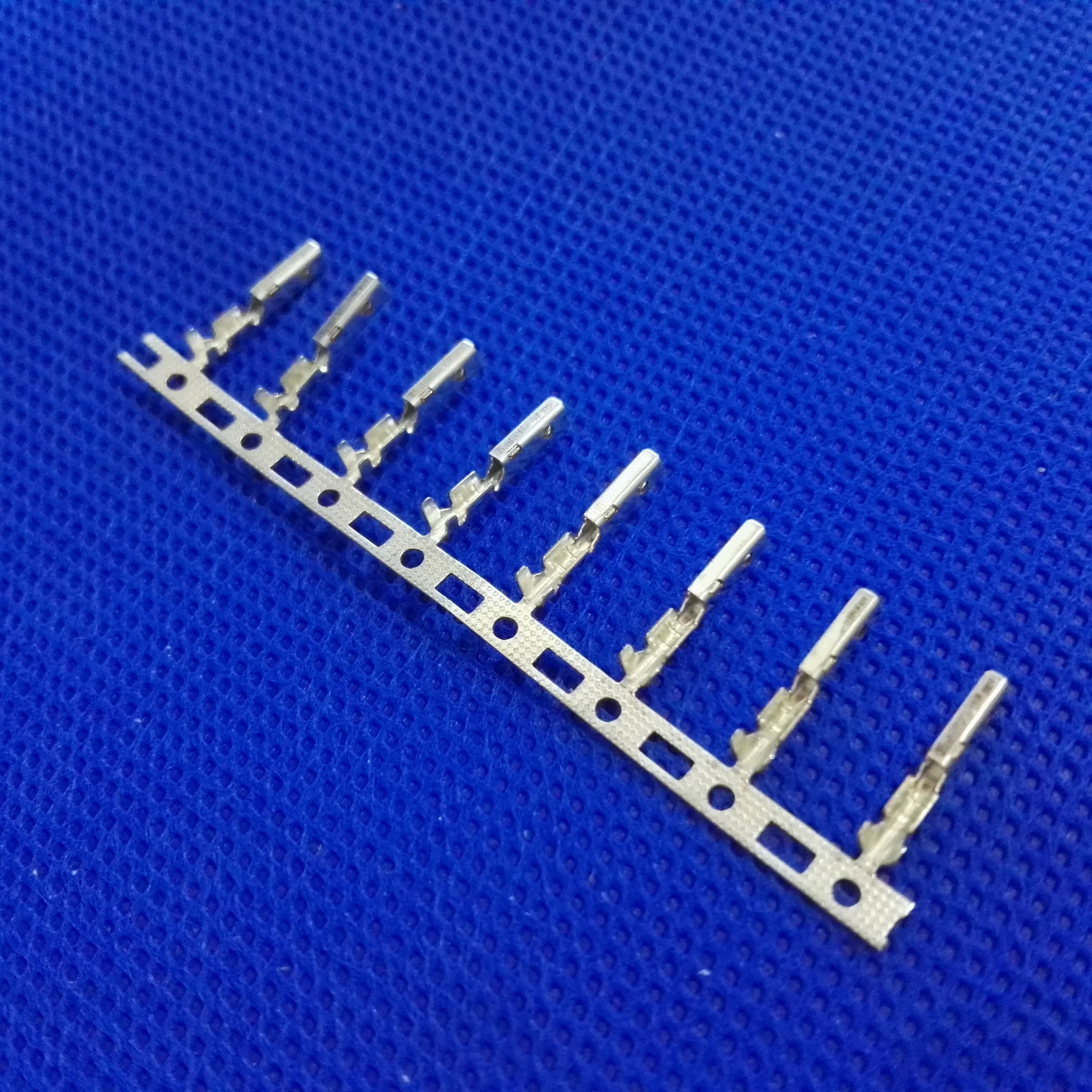

JWPF

Specifications

• Current rating: 3 A AC/DC (AWG #22) • Voltage rating: 100 V AC/DC • Temperature range: -55°C to +85°C (including temperature rise from electrical current) • Contact resistance: Initial: 10 mΩ max. After environmental testing: 15 mΩ max. • Insulation resistance: 1,000 MΩ min. • Withstanding voltage: No breakdown or flashover when applying 1,000 VAC for one minute. • Applicable wire range: Conductor size: AWG #26 to AWG #22 (0.13 mm² to 0.33 mm²) Insulation O.D.: φ 1.4 mm to φ 1.7 mm • Water ingress protection: IPX7 rated per
