12507HS
Specifications
Operating Voltage AC/DC 125V Current Rating AC/DC 1A Operating Temperature -25℃ ~ +85℃ Insulation Resistance 100㏁ Withstand Voltage No flashover or physical damage Contact Resistance 30mΩ Max Durability Contact Resistance: 50mΩ Max Vibration 1) Contact Resistance: 50mΩ Max 2) Discontinuity: 1μs Max
Product Description 250

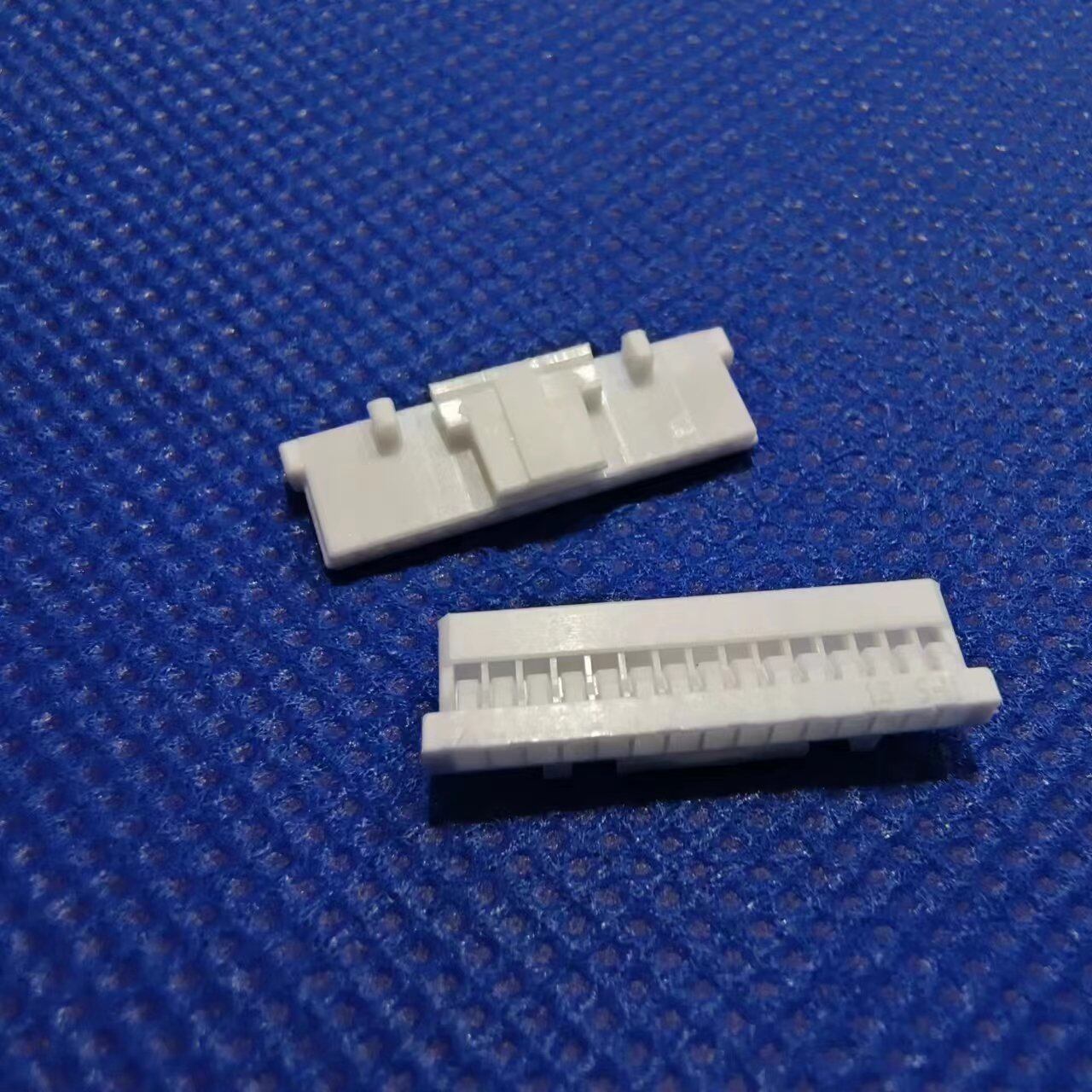

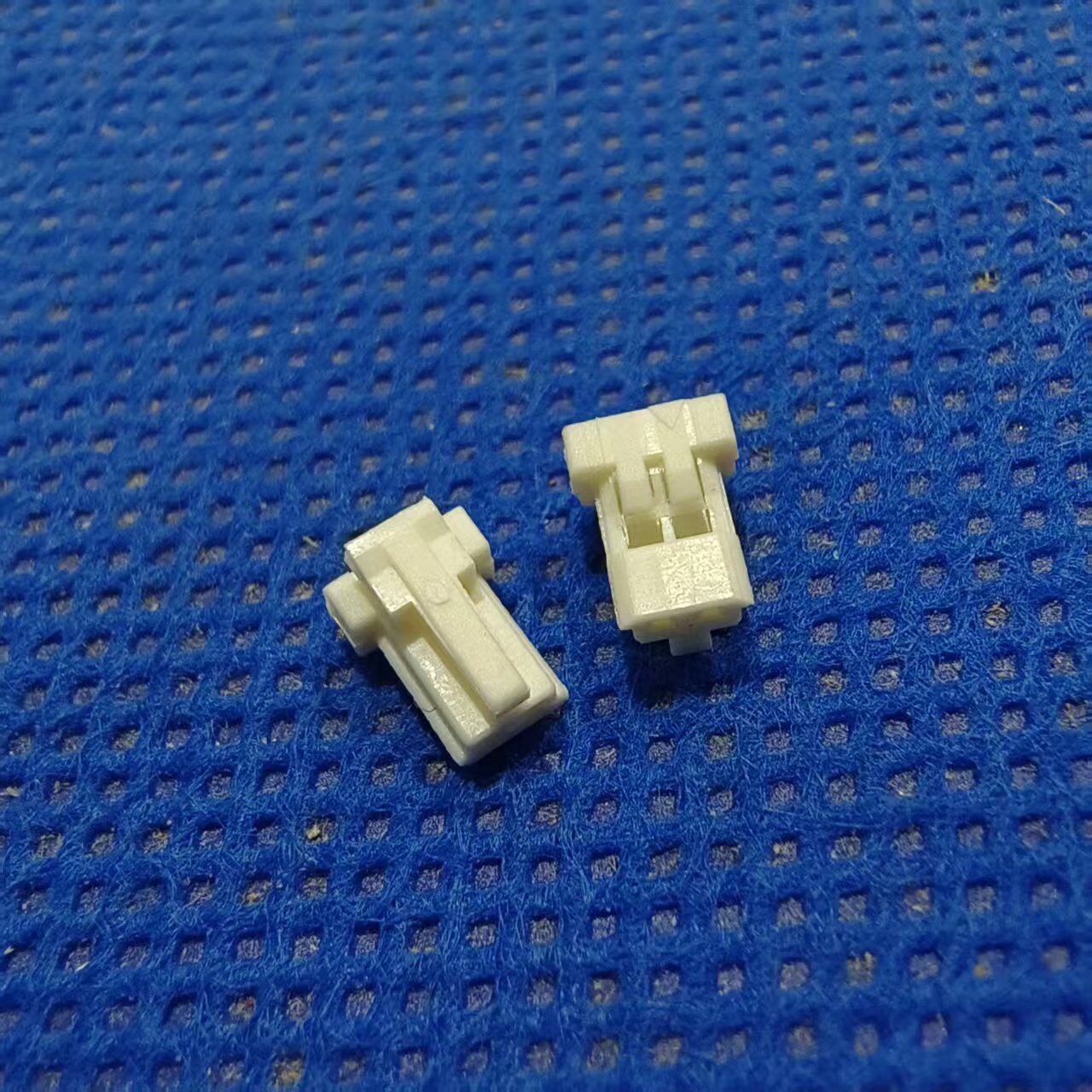

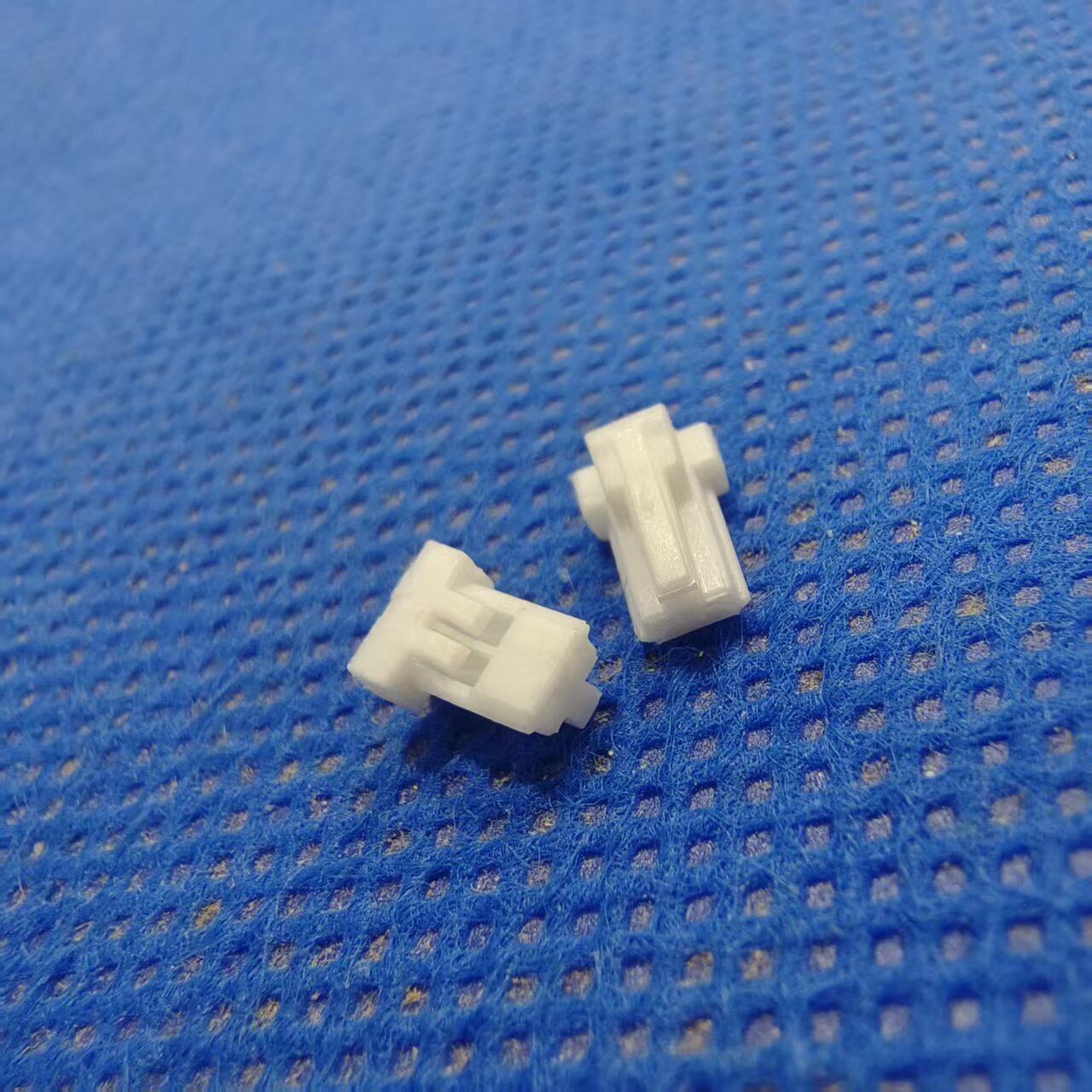

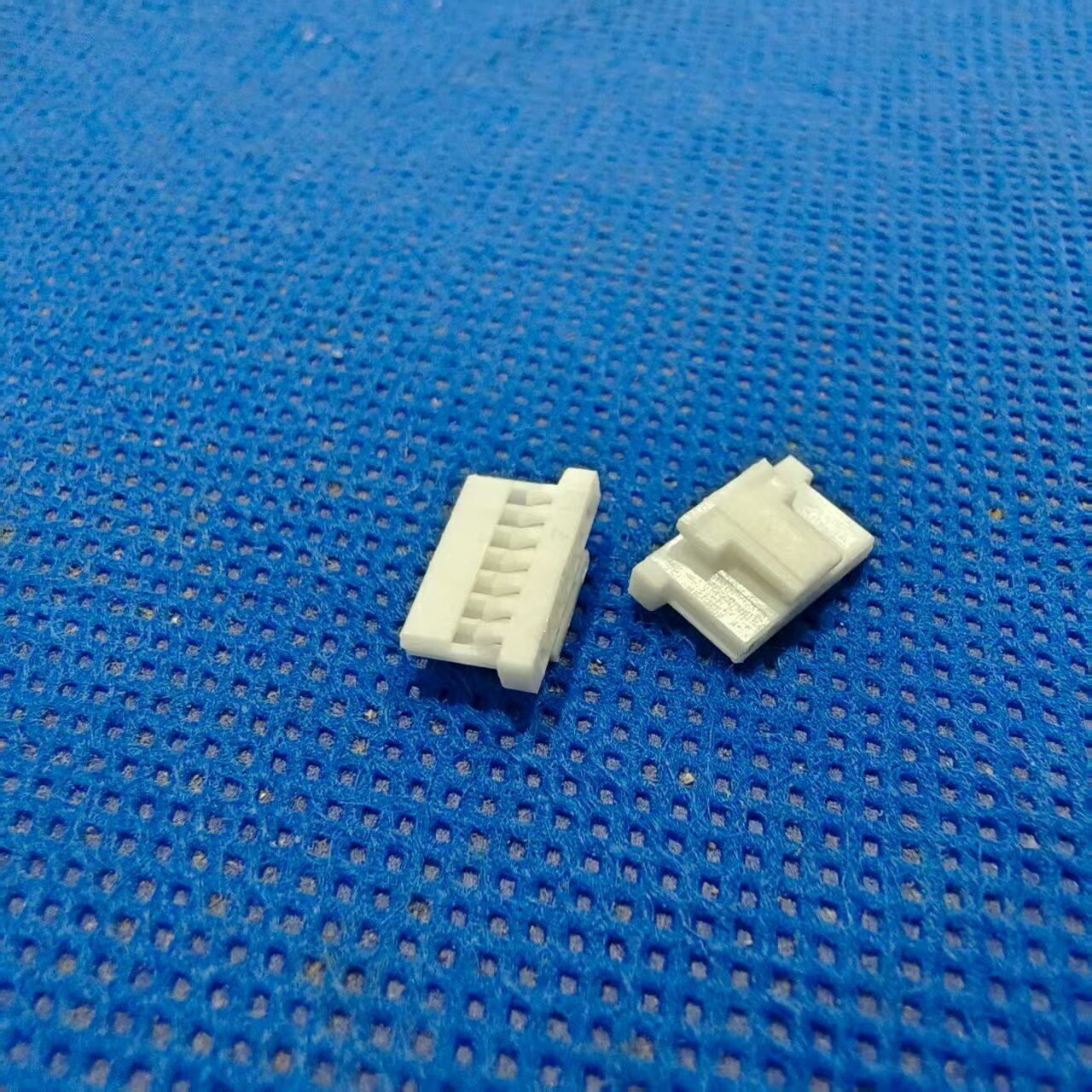

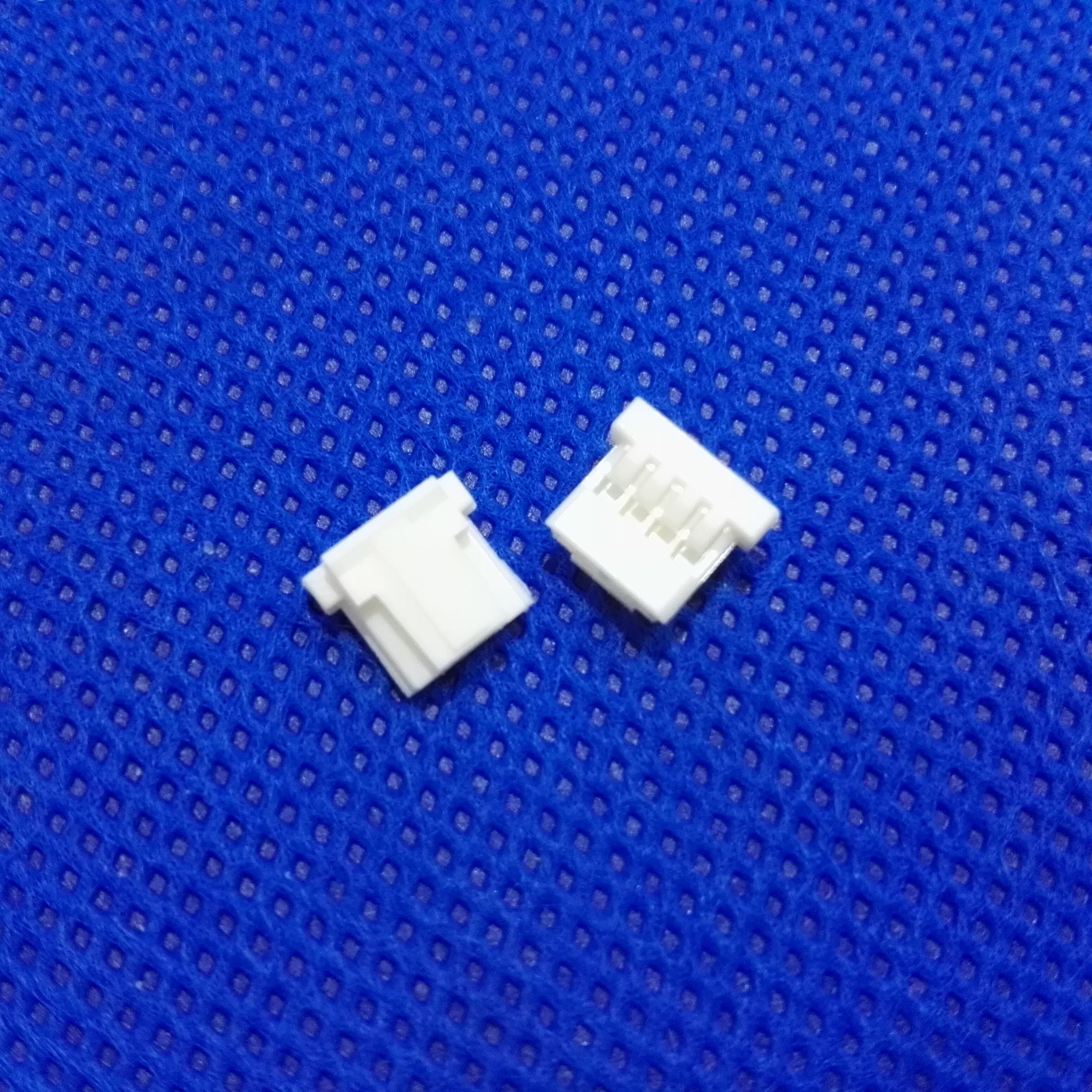

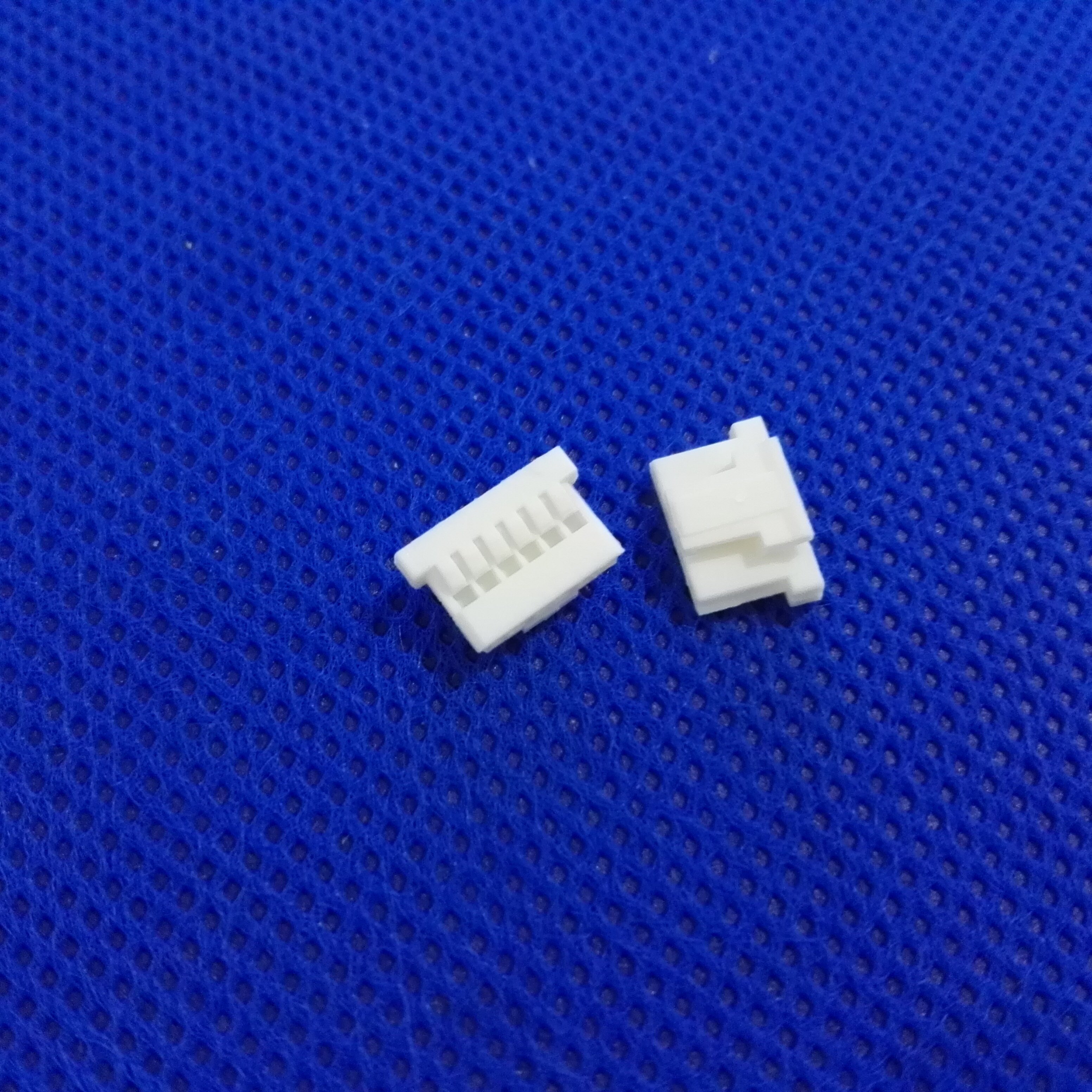

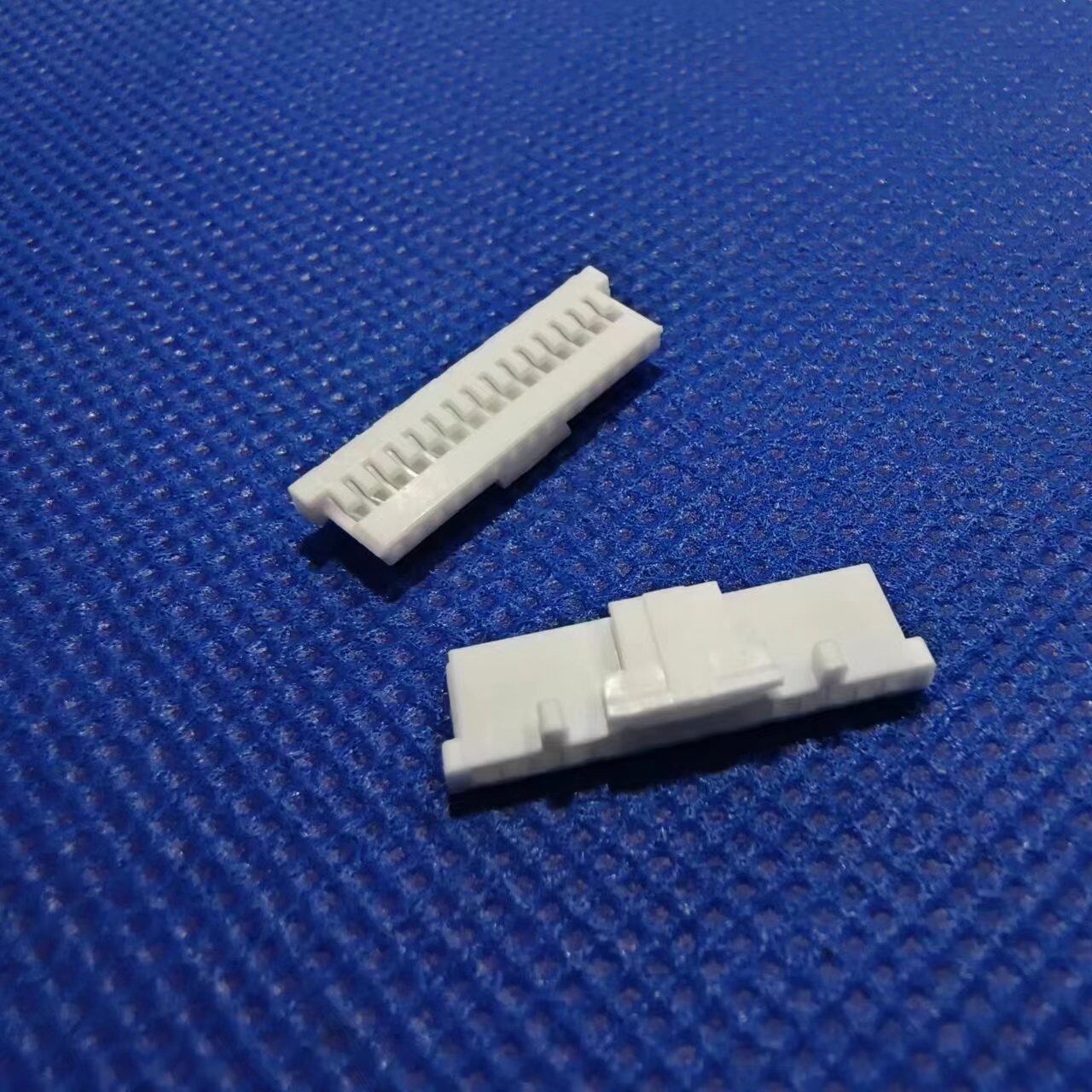

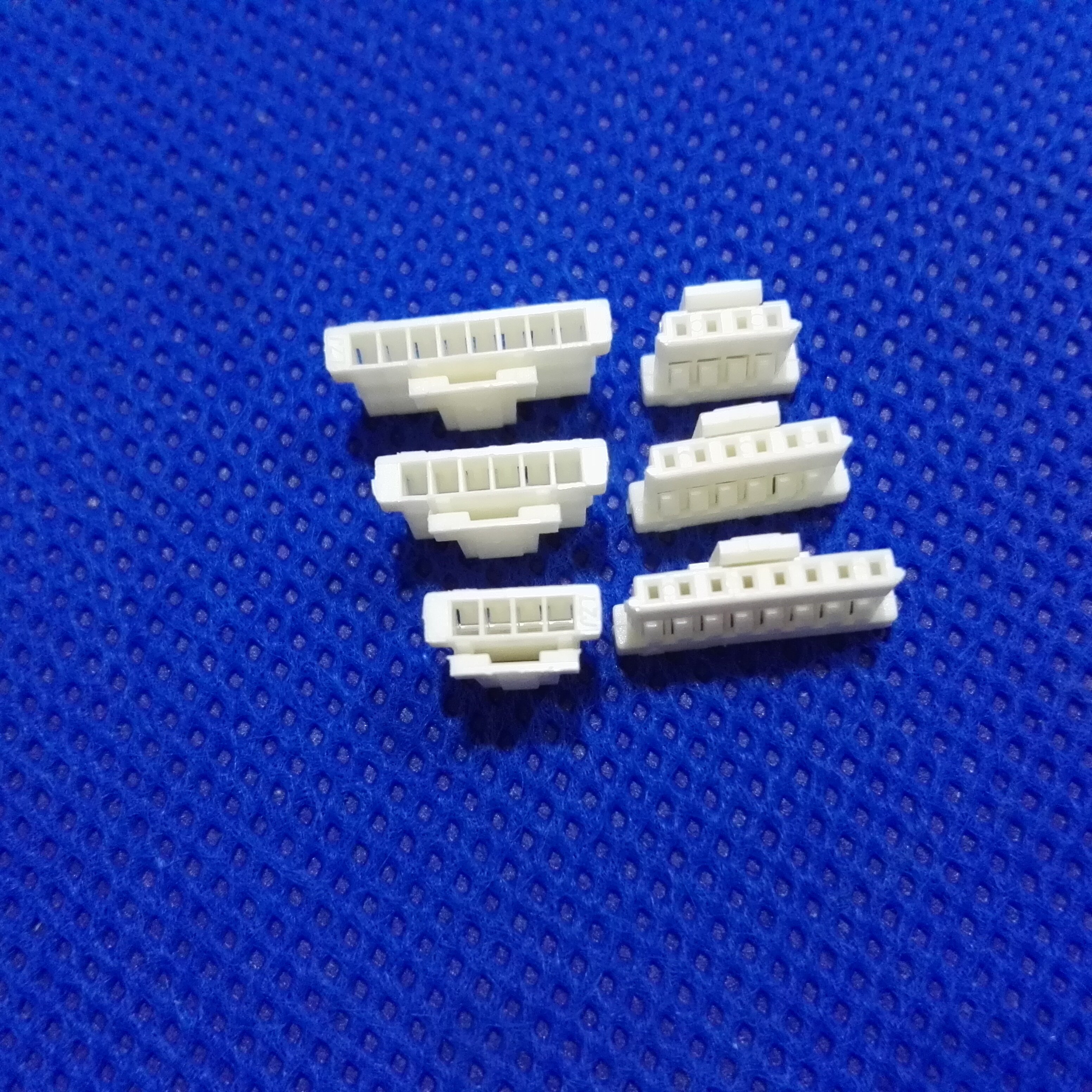

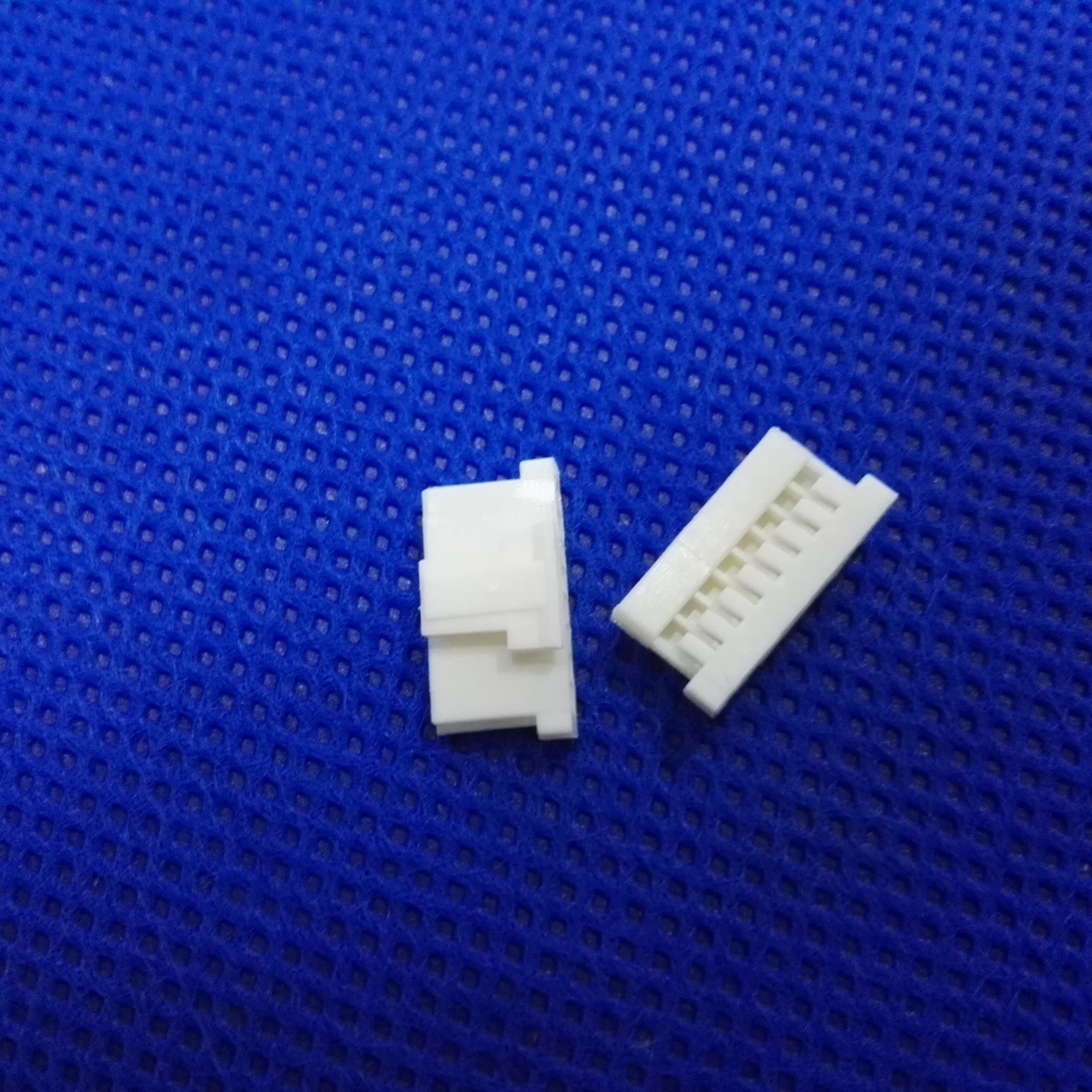

1.25mm Pitch Wire-to-Board Connector 1. This is a wire-to-board connector. 2. Product height: 4.1 mm, 7.5 mm. 3. Connector type: Vertical or Horizontal. 4. Use this connector with reflow soldering.
